268 Liter Stand Alone Medical Deep Freezer Stable Temperature Control

Led Digital Display Stable Temperature Control Standing Deep Freezer With Capacity 268 Liter

Wide voltage tolerance design with applicable voltage range of 187-242V/AC to protect eusure medical freezer to function well and its acurate microprocessor control systems, excellent cooling system and High-efficient environmentally friendly refrigerant had gotten positive feedback to store vaccines blood plasma and other biological materials.

Parameter	Model	MDF-40V268E
Specificaitons	Shelf/drawer	Shelves
	Cooling method	Direct cooling
	Defrost	Manual
	Refrigerant	R290
	Power consumption(kWh/24h)	4
	Noise(db)	48
	Ambient temperature(℃)	10~32℃
	Temperature range(℃)	·-30~-40℃
Cooling system	Compressor brand/QTY	CUBIGEL/1
	Condenser	Wire tube
	Sensor	NTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency	220/50Hz
	Power(W)	300W
	Current(A)	1.6A
Material	Inside material	Color sprayed steel
	Outside material	Color sprayed steel
	Insulation	PURF
Product
Dimension	Capacity(L/cu.ft)	268/9.46
	NT./GT.(kg)	98.5/118
	Exterior size(W*D*H)(mm)	690*680*1635
	Interior size(W*D*H)(mm)	508*455*1137
	Package size(W*D*H)(mm)	760*760*1750
	20GP/40GP/40HQ	21/45/45
Alarm System	High/low temperature	Y
	Power failure	Y
	Sensor error	Y
	Filter check	/
	Temperature controller failure	Y
	Low battery	/
	Condenser clean	/
	High ambient temperature	/
	Door ajar	Y
	Power failure backup system(alarm)	8h
Accessories	Foot	Y
	Castor	Y
	Inside door	Y
	Test hole QTY/diameter	Y
	USB port	/
	Remote alarm port	Y
Other	Certification	ISO9001,ISO13485,ISO14001,CE

Pefect Design

• USB data logging and temperature recorder (optional).
• Build-in lock with safety and beauty
• Lockable caster design for customer to move as needed

Reliability

• Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
• Optimized refrigeration system designed to maximize cooling effect and temperature uniformity
• Microprocessor control, digital display, adjustable temperature range: - 30ºC--40ºC
• LED digital display for clear observation,
• Wide voltage tolerance design with applicable voltage range of 187-242V/AC

Safety

• Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.
• Two types of alarm indications: audible buzzing and visual flashing light.
• Corrosion proof cabinet interior design
• Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage

Main Points

• LED digital display and increment tolerance at 0.1ºC
• Independent inner door to decrease the cooling leaking out, and provide more stable inside temperature performance
• High density CFC-Free urethane foam insulation.

Carton packing with strong belt Package size(W*D*H)(mm) 760*760*1750 20GP/40GP/40HQ 21/45/45 pieces

Anhui Zhongke Duling Commercial Appliance Co.ltd is a high-tech enterprise which specialized in designing,developing and manufacturing medical Freezers more than 10 years, like ultra-low temperature freezers,deep freezers,blood platelet incubators and customized medical freezers, widely used in laboratory & bio-medical storage equipments, cold room, cold-chain logistics and customized instruments.

Our factory locates in Hefei city, Anhui province, China which is near Shanghai and Ningbo port.

268L stand alone deep freezer

R290 stand alone deep freezer

ISO14001 deep freeze upright freezer

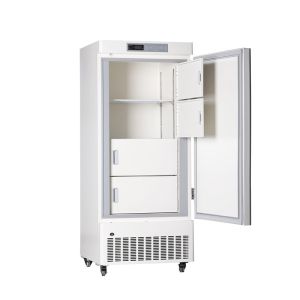

268 Liter Stand Alone Medical Deep Freezer Stable Temperature Control Images
